Up and Over Doors
The Voyager garage door consists of 42mm thick composite panels, with insulation made of solid ecological polyurethane offering excellent levels of thermal and sound insulation.

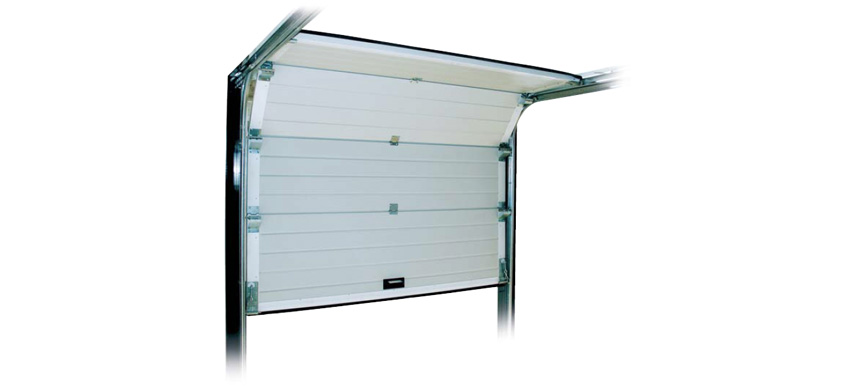

The Voyager sectional garage door is GEROLIMATOS’s proposal for those owning a garage space with limited height or seeking a modern and secure solution for their garage space.
The Voyager garage door consists of 42mm thick composite panels, with insulation made of solid ecological polyurethane offering excellent levels of thermal and sound insulation.
Movement is highly noise-free and it is ensured by a compact ceiling motor of modern design with incorporated lighting for the garage space.
It can be fitted with a wide range of accessories and automations (optional equipment) that offer even greater comfort and security.
Designs, finishes, colors

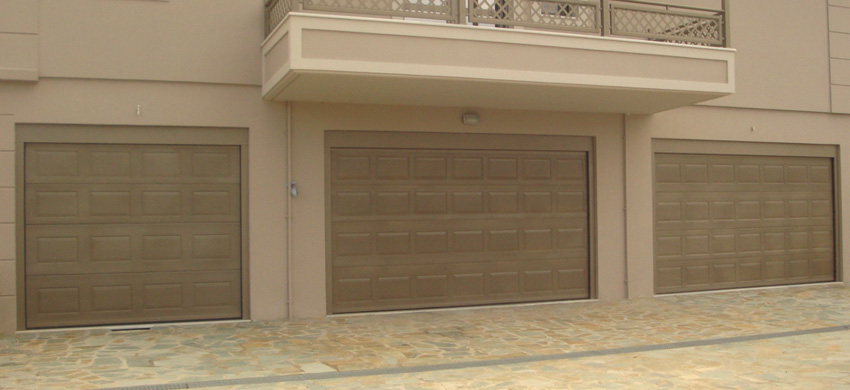

The Voyager sectional garage door is available it two designs: ribbed and paneled.
The finishing of the ribbed door is stucco (lightly speckled relief design), where as the finishing of the paneled door is wood fibers.
The standard color is white. Naturally, it is possible to select a different color from the RAL chart by special order.

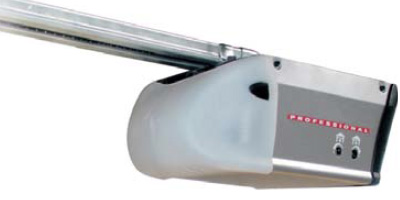

Compact ceiling motor
Small dimensions, powerful and noise-free.
Motion transmission to the door via a chain or belt for even less noise during operation.
With incorporated light to allow the driver to see clearly.

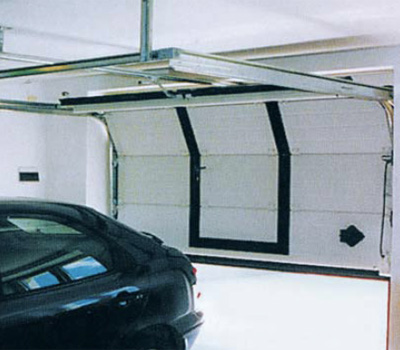

Incorporation of entrance door
If you want to allow constant entering-exiting without opening and closing the garage door, it is possible to incorporate a special door (optional equipment- special order).
Technical Specifications
Double faced 42 mm panel Twin wall, of high strength. Made of 1mm profiled galvanized steel and 40mm insulation with ecological polyurethane. It offers excellent thermal and sound insulation.
Special finishing for finger protection, interior - exterior The area where the panels are jointed together is specially formed so as to prevent potential trapping of the fingers while opening or closing the garage door.
Special side covers Once cut, the lateral parts of the panels of the Voyager garage door are covered with specially formed galvanized sheet caps, with the same finishing and color as the door’s interior surface.
Rubber seals at the guides The Voyager garage door is fitted with rubber seals along the lateral guides. Thus, it offers effective protection against dust while at the same time ensuring the noise-free operation of the garage door.
Special top and bottom rubber seals Special, single and triple adhesion rubber strips made of elastomer PVC are provided at the top and bottom of the garage door respectively, In order to protect the garage space against the wind, dust and water.
Handle Available in two types, embedded or external made of solid PVC.
Safety lock Four double security against burglary, you may add to the Voyager garage door the special security lock that is fitted with a pin for lateral locking onto the guides (optional equipment).
Remote controls Allows remote opening and closing of the garage door without requiring that you get out of your car at all (optional equipment).
Safety ratchet system For increased safety in the extremely unlikely event that the retaining wire-rope gets worn and broken the Voyager garage door may be fitted with a special safety mechanism (optional equipment).
Safety photocell Immobilizes the garage door as soon as the incorporated sensor detects the presence of people or objects under the garage door. Ideal safety when you have kids in the house (optional equipment).
Inspection & lighting windows The Voyager garage door may be fitted with special windows made of oval-shaped solid PVC for absolute sealing (optional equipment).
