GA60

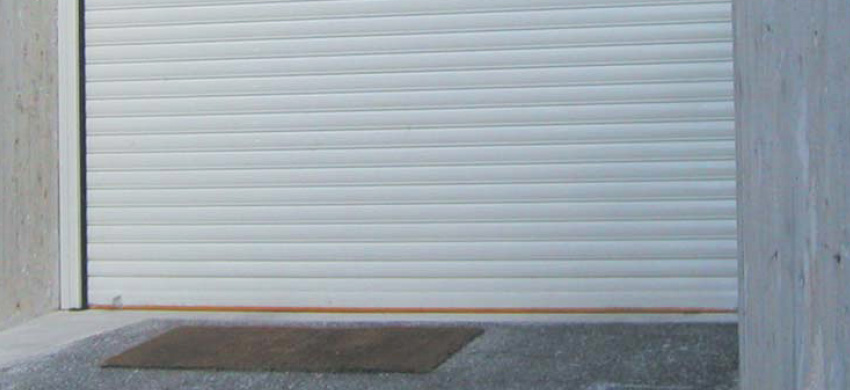

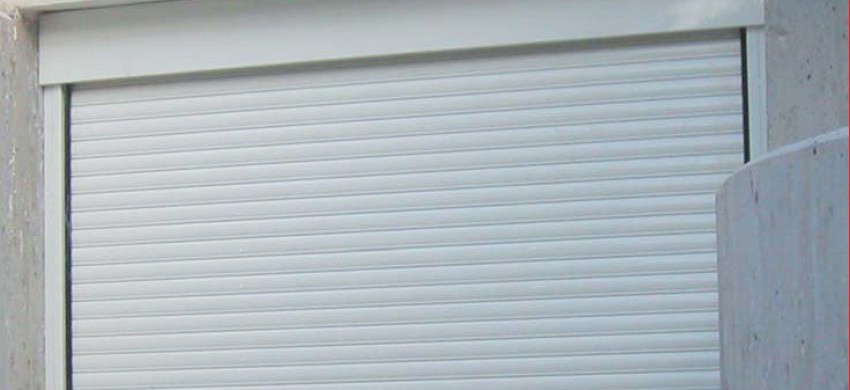

Roller shutter made of extruded aluminum profile, 1,5mm thick. Ideal for residential balcony doors and garage doors.
Roller shutter made of extruded aluminum profile, 1,5mm thick.
Ideal for residential balcony doors and garage doors when aiming for security and integrated protection of the house against ...undesired visitors.
The specially designed profile combined with the guides, causes the roller shutter to lock preventing any attempt for violation.
The roller shutter’s design combined with the electric reduction gear requires less winding space at the top part of the opening compared to other roller shutters.
Type G 60 is delivered electrostatically painted in the shades of the main color index.
Technical Specifications
PROFILE:
ALUMINUM
DIMENSION:
55mm
THICKNESS:
1,5mm
The last profile (endplate) is specially reinforced for higher strength. Also, a special elastomer PVC strip is attached for enhanced sealing.
Special polyamide cap at profile ends that reduces friction and noise.
Guide made of 1,5 - 2mm thick, "Ω" shaped galvanized steel that works together with a special aluminum profile and brush strip to reduce friction and noise.
To roller shutter locks into the guides in case of attempted violation.
