GA50
Roller shutter made of extruded aluminum profile, 1,5 thick.
Roller shutter made of extruded aluminum profile, 1,5mm thick, with the ability to receive polyurethane insulation.

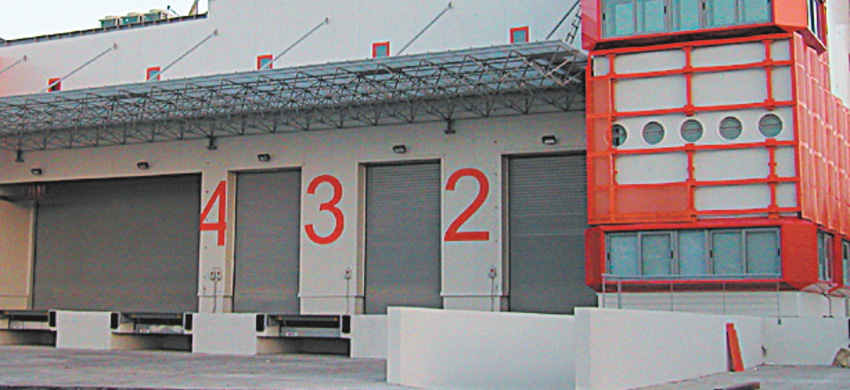

Ideal for industrial and residential use.
The specially designed profile combined with the guides, render this type advisable where wind pressure is high or where special thermal insulation requirements apply.
Type G 50 is delivered electrostatically painted in the shades of the main color index.
Technical Specifications
PROFILE:
ALUMINUM
DIMENSION:
110mm
THICKNESS:
1,5mm
Ability to add polyurethane for enhanced thermal insulation.
The last profile (endplate) is specially reinforced for higher strength. Also, a special elastomer PVC strip is attached for enhanced sealing.
Special polyamide cap at profile ends that reduces friction and noise.
Ability to incorporate special glazing made of transparent plastic material for lighting and visual communication with the interior.
Guide made of 1,5 - 2mm thick, "Ω" shaped galvanized steel that works together with a special aluminum profile and brush strip to reduce friction and noise.
