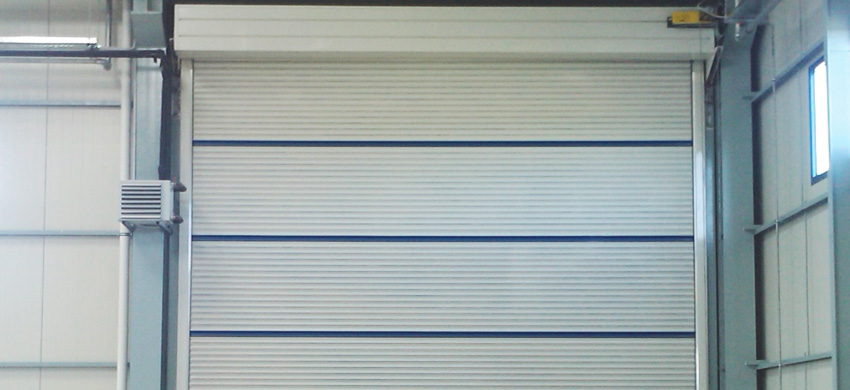

F120
Insulated roller shutter, made of galvanized steel panel, 0,5mm to 1,5 thick and 120mm wide.
Roller shutter made of galvanized steel, 0,5mm to 1,5mm thick, 120mm wide.
The interior consists of ecological polyurethane, thickness 17mm and density 160kg/m2.
It combines high strength and security standards, low noise during operation, thermal insulation, sound insulation and perfect finishing.
Type F 120 is delivered electrostatically painted in the shades of the main color index.
Technical Specifications
PROFILE:
STEEL
DIMENSION:
120mm
THICKNESS:
0,5mm-1,5mm
The last profile (endplate) consists of a specially reinforced aluminum profile fitted with a special PVC strip for enhanced sealing.
Special polyamide cap at profile ends that reduces friction and noise.
Ability to incorporate special glazing made of transparent plastic material for lighting and visual communication with the interior.
Guide made of 1,5 - 2mm thick, "Ω"shaped galvanized steel that works together with a special aluminum profile and brush strip to reduce friction and noise.
